An electric driveway gate is two systems pretending to be one. The first is the gate itself — the swinging or rolling structure that opens the driveway, anchored in the ground, fabricated from steel or wrought iron or aluminum or wood. The second is the operator — the motorized brain that automates everything the gate does. Most calls we get about electric gates are really operator decisions in disguise. Getting the operator right is what separates a gate that quietly works for fifteen years from one that fails twice a winter and gets blamed on the gate fabricator.
What follows is how we think about the operator, the safety circuit, and the infrastructure decisions behind every automatic gate we install or convert across Los Angeles.
The operator decides everything
The single most important decision in any electric gate project — new installation or conversion — is the operator. The gate’s weight, the daily cycle count, the available power at the curb, the architecture of the driveway, the local geology, and the customer’s tolerance for visible hardware all push the choice in different directions.
Swing gate operators
Swing gates — the most common residential style across Bel Air, Beverly Hills, Pacific Palisades, and the West LA flats — are automated with either arm operators or underground operators. Arm operators sit at hip height beside the gate post, push the gate open, and are easy to service. They’re also visible, which matters in luxury settings. Underground operators bury the entire mechanism in a concrete vault and leave only the hinge visible above grade. The aesthetic gain is real; the cost and the future-service complication are also real.
FAAC underground operators — the 770 and 750 series — are the European-style units architects and landscape designers usually specify when discretion matters. They cost more upfront, demand a properly drained vault, and require a more careful install. We do a meaningful share of estate-quality installs with FAAC underground because the result looks like there’s no operator at all. All-O-Matic surface-mount swing operators handle the rest of the residential market — well-regarded, parts widely available, serviceable by any competent technician anywhere in the basin.

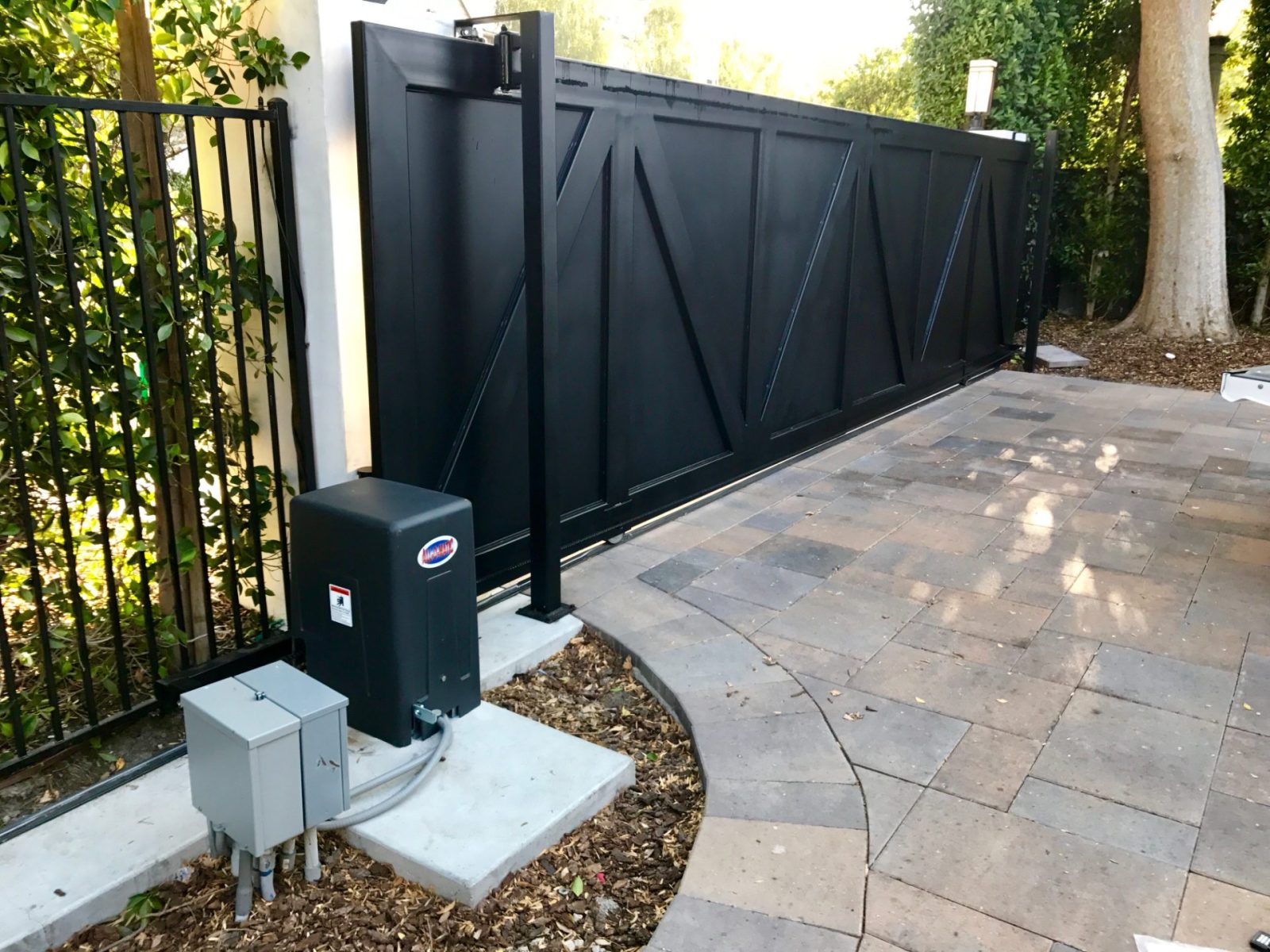

Slide gate operators
Sliding gates are the right answer where the driveway is too narrow for a swing, where the gate has to clear a downslope, or where a sliding panel suits the architecture better. DoorKing 9100 series and All-O-Matic SL slide operators dominate residential and light commercial sliding installations in our service area. For heavier gates — HOAs, apartment buildings, gated communities — we move up to Ramset or commercial-class DoorKing units.
Barrier arm operators
Barrier arms are the right answer for commercial driveways, multi-tenant apartment garages, and any property that needs high-cycle vehicle control. Ramset is the brand we install most often in this category, with All-O-Matic for lower-cycle residential or boutique commercial installs.
Power, conduit, and the dirty work
The visible operator is maybe a quarter of the actual job. The other three quarters happen in the ground.
Power at the gate is the first decision. Most residential driveways don’t have 120V power waiting at the gate post, and trenching from the house panel to the curb is rarely as simple as it sounds — mature landscaping, irrigation runs, decorative paving, root systems, and pre-existing utility conduit all complicate the route. We’ll walk every option with the customer before we put a shovel anywhere.
For long runs — over about two hundred feet from a usable panel — we move to 24V DC operators with on-board battery backup and a smaller trickle-charge supply. Most modern residential operators are designed around this architecture. It also satisfies California Title 19 wildfire requirements that the gate be operable without grid power.
Solar assist makes sense on a meaningful number of estate driveways where the gate sits hundreds of feet from any practical power source. We’ve done solar-assist installations in the canyons above Beverly Hills and in the gated hillside communities of the western Valley where bringing trenched power to the curb would have cost more than the gate. The solar panel feeds a deep-cycle battery; the operator runs from battery; the panel keeps the battery topped up.
Conduit sizing matters more than most installers admit. We pull oversized conduit on every install because we know the customer is going to want an intercom, a video doorbell, a callbox, a keypad, or a card reader within the next five years. Pulling extra conductors through an undersized conduit you trenched years ago is the worst job in this trade. Plan for the future at the time of the trench.
UL 325: the non-negotiable
UL 325 is the safety standard for powered driveway gates in the United States. It exists because automated gates kill and maim people, and the rate at which they do so dropped meaningfully after this standard became enforceable.
The standard requires multiple independent safety systems on every powered gate. Photo eyes — reversal beams — have to be mounted on both sides of the gate’s travel path, on both the entry and exit sides for two-way driveways, low enough to catch a small child or a pet. Loop detectors buried in the driveway pavement detect vehicles and prevent the gate from closing on a car. On commercial-class gates, edge sensors mounted on the leading edge of the gate detect contact and reverse instantly. On Class III and higher gates, audible warnings during operation are mandatory.
This is where corners get cut by installers who shouldn’t be in this trade. Photo eyes installed too high. One photo eye instead of two. Loop detectors placed where they don’t actually cover the closure path. Edge sensors missing entirely. The standard exists for a reason, and the liability for a non-compliant install lands hard on whoever did the work the day something happens.
We treat UL 325 compliance as the floor, not the goal. Every gate we install or convert leaves with the full safety circuit wired, tested, and documented.
Converting a manual gate to electric
The most common request we get in the residential automation category is converting an existing manual gate — usually a heavy decorative iron swing gate fabricated years ago by someone who’s retired or no longer in business — to electric operation. These conversions are good work and we do a lot of them, but they require an honest pre-install assessment.
Three things have to be true before a conversion makes sense. The gate has to be structurally sound. Decorative ironwork that’s started to rust at the hinges or sag at the leading edge isn’t going to survive electric cycling — the operator is going to drag a gate the gate doesn’t want to be dragged through, and something is going to fail. The hinges have to be heavy enough. Residential iron gates were often hung on hinges sized for occasional human use, not eight automated cycles a day for fifteen years. We frequently replace the hinge hardware as the first step of any conversion. And the gate weight has to be honestly measured. Decorative ironwork is almost always heavier than the owner thinks — sometimes by a factor of two — and undersizing the operator to a guessed weight is the single most common reason conversions fail within the warranty period.
Local context
The Los Angeles driveway gate market splits roughly into three zones. The estate corridor — Bel Air, Beverly Hills flats, Beverly Hills 90210 above Sunset, Holmby Hills, Pacific Palisades — runs heavy on custom iron and architectural-grade installs with hidden underground operators. The hillside neighborhoods — Hidden Hills, Calabasas, the canyons above Sunset, Encino hills, and similar — run heavy on long driveways, solar-assist installs, and wildfire-code compliance with battery backup operation required by code. The flatter inland neighborhoods — the Valley flats, mid-city, Sherman Oaks, the cluster of West LA flats — run a wider mix of styles and budgets.
What unites all three: power quality from the LA Department of Water and Power varies, summer heat stresses every component, and the trade itself is full of installers who quote a number, dig a hole, mount a unit, and don’t come back to look at it again. We’ve been doing this since 2010, and the gates we installed in 2011 are still under our service when the owners call.
How we work
Silence Garage Door & Gates is family-owned, CSLB License #1079396, M insured. We install and service electric driveway gates across the LA basin with the brands the trade actually trusts — FAAC, All-O-Matic, DoorKing, Ramset, Eagle, and LiftMaster commercial. We work with custom iron fabricators when the gate itself is custom, and we’ll match the operator to the gate, not the other way around.
Estimates are free. We’ll come look at the driveway, walk the power and conduit options with you, talk through operator choices and what each one means for the next ten years, and give you a real estimate based on what the install actually requires. No pressure, no upsell beyond what the install actually needs.
If you’re converting a manual gate to electric, replacing a tired operator, or starting a driveway gate project from scratch, give us a call. We’ll come out and have an honest conversation about what makes sense for your property.
